    INTEL GUIDE FOR LGA1700 / LGA1851PDF · pages 17–19Pages 17–19

    BIOS 2202 Working Example

    6.1 My Working Profile and Its Origins

    PDF · 17Page 17

    The settings below belong to a previously tuned CPU, not a proposed preset for every CPU. I retain the numbers from the first guide, while distinguishing the historical export from later clarifications in the manual.

    My Working Profile and Its Origins
    SettingValueStatus / meaning
    CPU / motherboard14900KS / Apex EncoreBIOS 2202; ASUS Advanced OC Profile
    P / E / Ring RatioAuto / Auto / AutoNot fixed all-core clock speeds
    Hyper-ThreadingDisabled8P+16E, 24 threads; a fact about this example
    SVID BehaviorAuto in the manualArchived TXT: Trained; the later clarification is not a new measurement
    CPU LLCLevel 5Selected VCCCORE VRM level
    IA AC / DC Load Line0.35 / 0.73 mΩAC is my result; DC is the table value for LLC5 (3.2)
    Synch ACDCDisabledIndependent AC tuning
    Actual / Global Core / Cache VoltageAuto / Auto / AutoNo fixed Vcore or global offset
    PL1 / PL2320 / 320 WSelected Extreme operating envelope for the 14900KS
    Tau / ICCMAX56 s / 400 ANot a margin estimate based on a single IOUT Maximum
    IA CEP / SA CEPEnabled / EnabledProtections remain enabled
    UnderVolt ProtectionDisabled in the exportDo not treat disabling it as mandatory for a new setup
    ABT / TBM 3.0Enabled / EnabledDynamic frequency policy
    TVB Voltage Opt. / Enhanced TVBEnabled / EnabledTemperature-dependent mechanisms are retained
    CPU Current Reporting100%No intentional distortion of current reporting
    Ring Down Bin / Thermal MonitorEnabled / EnabledRing can downclock; thermal protection is active

    The text profile and BIOS recording remain historical materials. They may contain Trained and other OS, memory, or peripheral settings that are outside the method and are not recommendations in this CPU manual.

    DOCUMENTATION CONSULTED: material from the working example; ASUS BIOS guides and information; Intel specifications and explanations. Author's BIOS Profile, Author's Screenshots, ASUS ROG Z790 BIOS Manual, Intel UVP 17

    6.2 Reference Screenshots

    PDF · 18Page 18

    These are earlier reference materials, not new test runs. Both images are clickable and link to the originals.

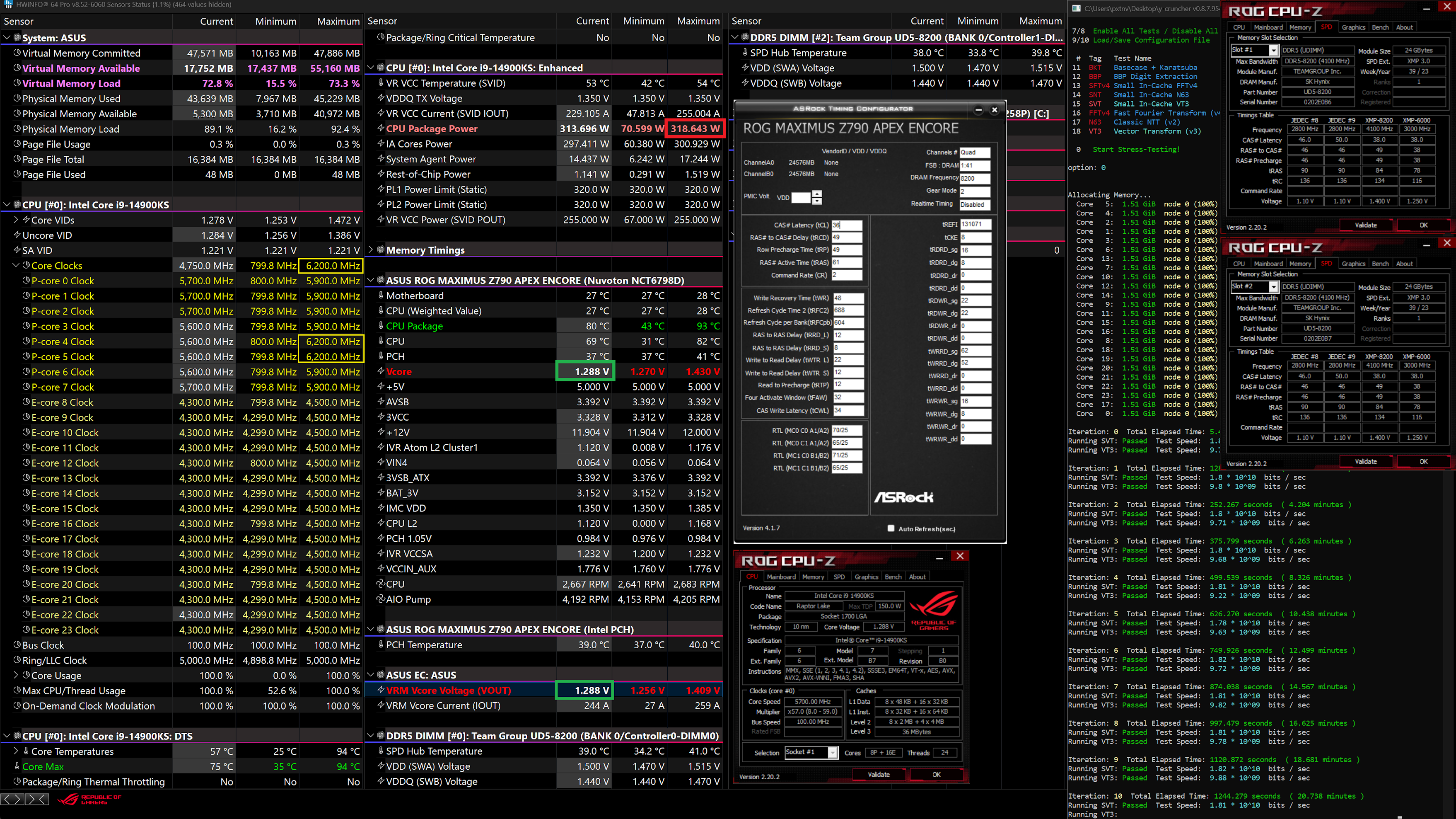

    CPU: Y-CRUNCHER SVT / VT3

    CPU: Y-CRUNCHER SVT / VT3

    The screenshot shows 20.738 min. The half-hour SVT/VT3 duration comes from my report of the run, not the elapsed time visible in this image.

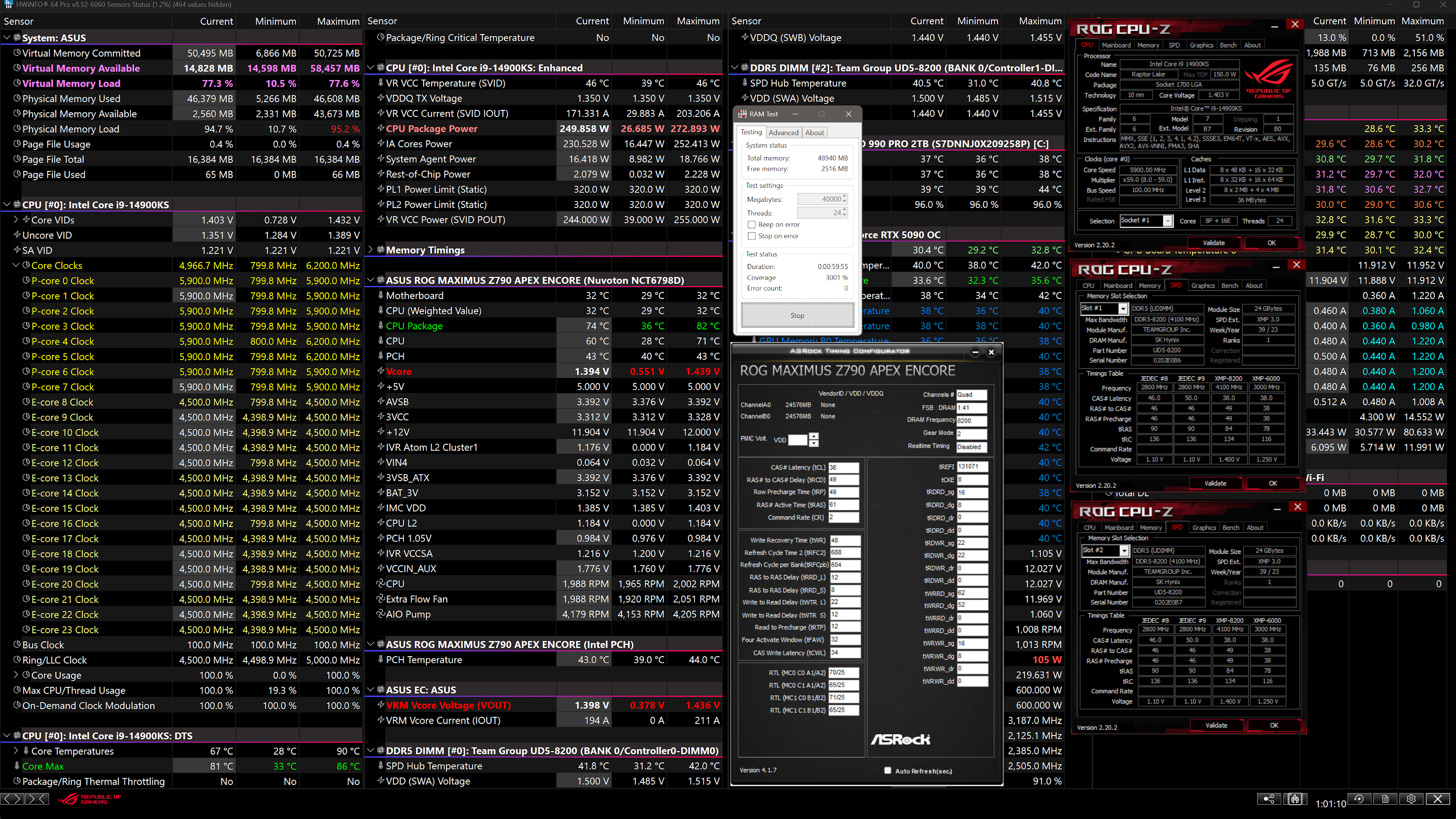

    RAM TEST: 3001%, 0 ERRORS

    RAM TEST: 3001%, 0 ERRORS

    Ring in the screenshot: Current 4500 MHz (×45), Maximum 5000 MHz (×50). This run does not establish continuous operation at Ring ×50.

    6.3 BIOS 2202 Video Recording

    PDF · 19Page 19

    My recording of the original daily-use BIOS profile settings.

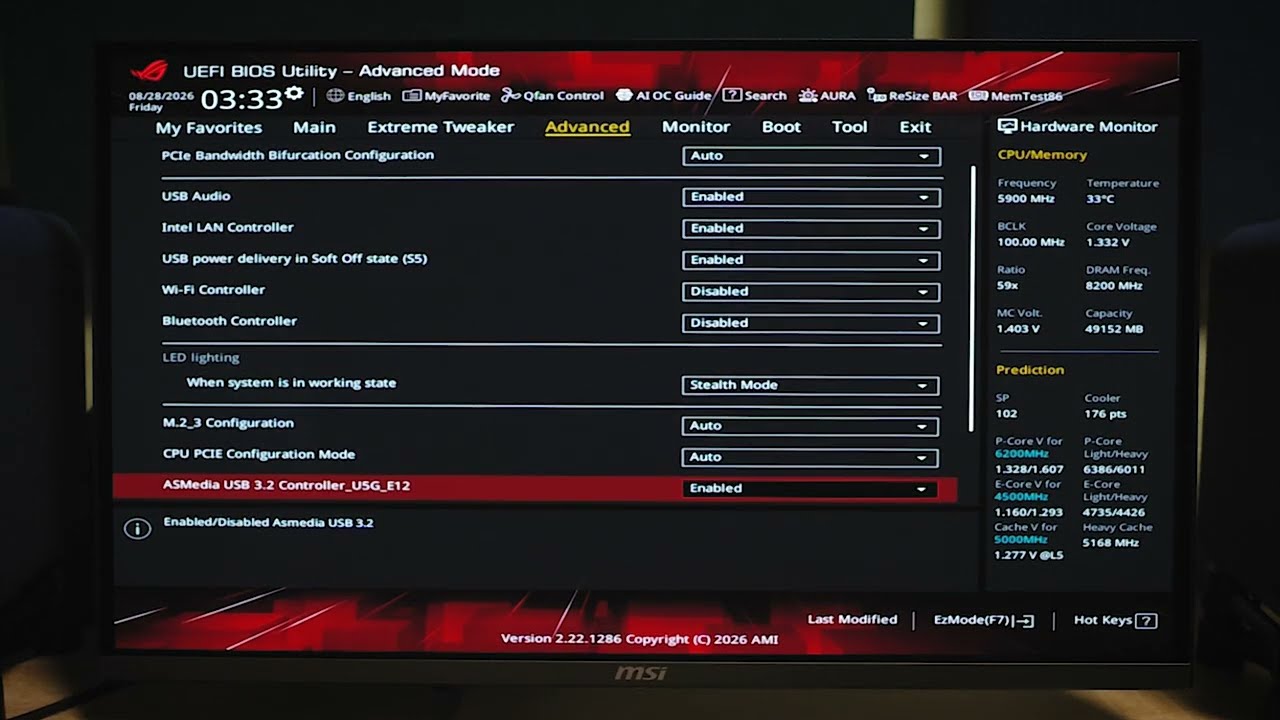

    Z790 APEX ENCORE + 14900KS | 48GB@8200-36 | DAILY USE [BIOS 2202]

    Z790 APEX ENCORE + 14900KS | 48GB@8200-36 | DAILY USE [BIOS 2202]
